Heavy machinery, conveyor belts, and rows of glowing monitors all rely on a steady flow of juice. In a modern plant, that flow has to be both dependable and economical, or the whole operation grinds to a halt. Enter the SMPS. The little box often mounted inside panels quietly swaps, shapes, and steers electricity where it needs to go. You may have seen the abbreviation popping up in data sheets, yet most people ask: What does it actually stand for, and why should I care?
The answer is far from abstract for engineers, buyers, or maintenance crews. This quick overview peels back the jargon to show how a Switched-Mode Power Supply improves the muscle and nerves of industrial automation gear.
Unpacking the Acronym
What does SMPS really mean? Those three letters expand to Switched-Mode Power Supply. The title hints at its inner choreography: the power stream is switched on and off at dizzying speed while a circuit brain keeps the voltage honest. That timing trick lets the unit avoid the old-school method of burning off extra volts as heat. Because of that thermal saving, motorists keep factories compact, cool, and, just as important, cheaper to run.
The full form of SMPS is Switched-Mode Power Supply, but most folks just call it the compact, cool grey box humming behind their desk. What really matters is how it reshaped the power-supply game by wasting almost no juice while still looking small enough to slip into your pocket. That pretty much explains why factories and server farms never stop raving about it-that’s where every second of uptime feels priceless.
How SMPS Works: A Simplified Explanation for Industrial Applications
Think of an SMPS as a voltage DJ, remixing your incoming AC or DC signal into something tasty and manageable for the gear that actually does the work. The heart of the unit is a tiny switching transistor that flicks on and off faster than the average eye can blink, chopping the current into neat little chunks.
- Input Rectification: The wall plug delivers AC, and first the circuit scrubs it into rough, lumpy DC juice.
- High-Frequency Switching: A driver chip orders the transistor to dance on and off, making the current pulse like a disco beat.
- Transformation and Filtering: Those pulses zip through a high-frequency transformer that tweaks the voltage, adds magnetism, and keeps the output side electrically separate.
- Output Rectification and Regulation: One last round of diodes and capacitors smooths the signal, spitting out glossy, steady DC that’s ready to light up your gadget without drama.
SMPS, or switched-mode power supplies, run at high switching speeds, so they end up skinnier and thriftier on energy than traditional linear supplies. That trim size and good efficiency slide SMPS right into crowded control cabinets or on the go with mobile automation rigs.
Advantages of Using SMPS in Industrial Power Systems
Manufacturers have leaned toward SMPS over the years because these supplies marry energy savings with rock-solid reliability. Here, in plain terms, are the biggest reasons people wire an SMPS into their industrial automation control products.
1. High Efficiency
Most switched-mode units hit the 80%-to-95% efficiency sweet spot. When the electrons do their job that well, only a fraction even warms up, so electrical panels need lighter fans-or none at all.
2. Compact Design
SMPS squish their voltage conversions into tiny, high-frequency transformers. The smaller guts mean a DIN rail slot or cramped embedded case usually stretches to fit.
3. Wide Input Range
Many models swallow anything from 100 volts to 240 volts without fuss. That flexibility suits machines hopping from Europe to Asia or older plants where the grid sometimes wobbles.
4. Protection Features
Over-voltage, over-current, heat, and outright shorts? Most modern SMPS keep a watchful eye and trip themselves before delicate sensors or motors take the hit.
5. Low Electromagnetic Interference (EMI)
Modern switched-mode power supplies use clever filtering tricks to keep EMI in check. That low noise level means radios, wireless sensors, and all the other talkative gadgets on an industrial floor stay in sync and do their jobs without surprise drop-outs.
Because EMI is practically wiped out, control rooms notice fewer ghost alarms and phantom faults, which cuts down on paperwork and late-night troubleshooting.
People love the compact, lightweight design of these supplies, too; they take up much less rack space than older transformers and cool by moving air, not heat sink fins.
SMPS in Real-World Industrial Automation Environments
You run into switched-mode power supplies everywhere, from assembly lines in the car industry to clean rooms that pack pills into blisters.
Common Use Cases:
- PLC and Sensor Powering: A steady DC feed keeps logic racks and analog sensors talking without dropout.

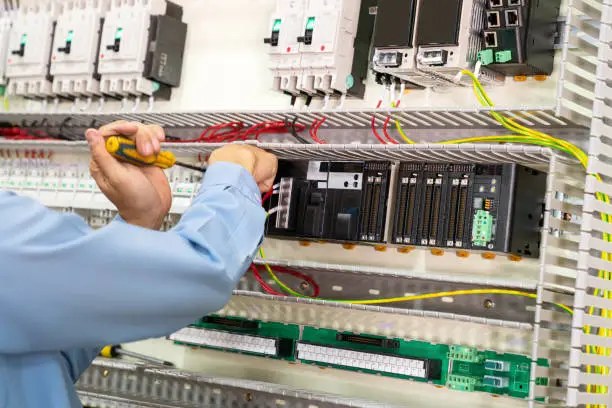

- Control Cabinets: One SMPS in the panel can blanket a dozen circuits and still have headroom for extras.
- Industrial Robots: Actuators, encoders, even tiny microcontrollers inside the arm expect tidy voltage, and SMPS delivers that.
- Factory Equipment: Drive motors, field bus radios, and emergency safety relays all pull their juice from these compact beasts.
Imagine a bottling line where glass clinks by at 1,500 bottles per hour; any flicker in power could dump a whole shift of product. An SMPS locks the voltage within a hair of what the motor controllers want, so everything-from label sensors to fill valves-keeps running, and the plant manager sleeps easily.
No factory manager wants a surprise outage, and the right switch-mode power supply is often the part that keeps everything humming. Lots of industrial teams play it safe by ordering their SMPS from suppliers who know automation inside and out.
Picking the Perfect SMPS for Your Machinery
Swapping one power brick for another isn’t just volts in and volts out. It’s about picking a unit that can handle your plants heat, dust, and red-tape headaches at the same time.
Must-Check Details
- Input Voltage Range: Make sure the SMPS will glide onto your local grid without popping a fuse.
- Output Numbers: The supply should comfortably meet your gear’s wattage and still breathe when the load spikes.
- Real-World Footprint: Whether it sits on a DIN rail or bolts down to a panel, size matters. Pick the form factor that doesn’t force a redesign.
- Toughness Ratings: Smoggy or sweaty zones need an IP seal, while sizzling aisles might call for a hardened case.
- Red Tape Approvals: CE, RoHS, UL-you’ll want all the right stamps if the unit has to cross borders.
- Supplier Backing: A datasheet, hook-up sketches, and fast tech support can save a lot of head-scratching later.
Look ahead when you pick a power supply. A solid design should let you add modules or build in redundancy without scrapping what you already own.
Shopping with a veteran industrial-automation distributor turns a one-time purchase into a long-term relationship. You’re buying stability as much as the part itself.
Conclusion
The letters in SMPS stand for Switched-Mode Power Supply, yet the device itself does a lot more than its name lets on. It quietly shields modern factories from voltage swings while keeping everything running safely and on schedule.
Whether you oversee an enormous plant or are wiring up a handheld tester, the right SMPS keeps your gear humming instead of hiccuping. Trusted controls suppliers bring the performance ratings, safety certifications, and customer support you cannot afford to guess at.
Inside heavy industry, SMPS technology has gone from nice-to-have to must-have. Spend a few extra minutes on research today, and your automation setup will stay grateful for years.
