Understanding the Martindale Rub Test: A Comprehensive Guide to ASTM D4970 and Martindale Pilling Tester

Introduction

Textile durability is a critical factor in determining the quality and longevity of fabrics used in apparel, upholstery, and industrial applications. Among the various testing methods available, the Martindale Rub Test stands out as a widely recognized standard for evaluating fabric abrasion resistance. This test is commonly conducted using the Martindale Pilling Tester, following procedures outlined in ASTM D4970 and other international standards.

In this article, we will explore the Martindale Rub Test in detail, covering its principles, testing procedures, equipment (such as the Martindale Pilling Tester), and its significance in textile quality control.

What is the Martindale Rub Test?

The Martindale Rub Test is a standardized method for assessing a fabric’s resistance to abrasion, pilling, and surface wear. It simulates real-life friction and rubbing forces that textiles endure during use, helping manufacturers predict how well a fabric will hold up over time.

The test is performed using a Martindale Pilling Tester, which applies controlled rubbing motion between fabric samples under specified pressure. The results help determine the fabric’s durability, making it essential for industries such as:

Apparel & Fashion (jeans, jackets, workwear)

Home Textiles (upholstery, curtains, bedding)

Automotive Interiors (seat covers, carpets)

Technical Textiles (protective clothing, military gear)

ASTM D4970 Martindale: Standard Test Method for Pilling Resistance

The ASTM D4970 Martindale standard provides guidelines for evaluating fabric pilling resistance using the Martindale Pilling Tester. Pilling occurs when loose fibers form small balls on the fabric surface due to friction, reducing aesthetic appeal and comfort.

Key Aspects of ASTM D4970

Test Principle

Fabric samples are rubbed against an abrasive material (usually wool or standard fabric) in a circular motion.

The test continues until pilling becomes visible or the fabric shows significant wear.

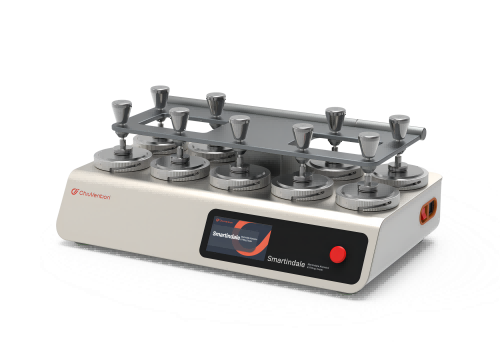

Equipment: Martindale Pilling Tester

The machine features multiple testing stations where fabric specimens are mounted.

A weighted arm applies consistent pressure (typically 12 kPa for upholstery, 9 kPa for apparel).

The tester records the number of rub cycles before noticeable pilling or wear occurs.

Evaluation & Rating

After testing, fabrics are compared to standardized pilling images (ISO 12945-2, ASTM D4970).

Ratings range from 1 (severe pilling) to 5 (no pilling).

How the Martindale Pilling Tester Works

The Martindale Pilling Tester is the primary instrument for conducting the Martindale Rub Test. Here’s a step-by-step breakdown of its operation:

1. Sample Preparation

Fabric specimens are cut into circular shapes (typically 38 mm or 140 mm in diameter).

The samples are mounted on specimen holders with a foam backing to simulate real-world conditions.

• Setting Test Parameters
• Pressure: Adjusted based on fabric type (e.g., 9 kPa for lightweight fabrics, 12 kPa for heavy-duty textiles).

Abrasive Material: Standard wool or emery cloth is used as the rubbing medium.

Cycle Count: Tests can range from 1,000 to 50,000+ cycles, depending on the intended application.

3. Conducting the Test

The machine moves the fabric in a Lissajous figure motion (a combination of circular and linear movements) to ensure even abrasion.

After predefined cycles, the fabric is inspected for:

Pilling (fiber entanglement)

Fuzz formation (loose fibers)

Hole formation (complete wear-through)

4. Result Interpretation

Pass/Fail Criteria: Some industries require fabrics to withstand a minimum number of cycles (e.g., 20,000 for premium upholstery).

Comparative Analysis: Tested fabrics are ranked against control samples to determine quality.

Why is the Martindale Rub Test Important?

Quality Assurance

Ensures fabrics meet industry standards before mass production.

Reduces customer complaints related to premature wear.

Material Selection

Helps designers choose the right fabric for specific applications (e.g., high-performance sportswear vs. delicate fashion fabrics).

Compliance with International Standards

Apart from ASTM D4970 Martindale, the test aligns with:

ISO 12945-2 (Pilling resistance)

ISO 12947 (Abrasion resistance)

AATCC 16 (Colorfastness to rubbing)

Sustainability & Cost Efficiency

Identifying durable fabrics reduces waste and extends product lifespan.

Comparing Martindale Rub Test with Other Abrasion Tests

While the Martindale Rub Test is widely used, other abrasion tests include:

Test Method	Principle	Common Applications
Martindale (ASTM D4970)	Circular rubbing motion under pressure	Upholstery, apparel, automotive
Taber Abrasion (ASTM D3884)	Rotating abrasive wheels	Heavy-duty fabrics, flooring
Wyzenbeek (ASTM D4157)	Back-and-forth linear motion	Furniture, contract textiles

The Martindale test is preferred for its ability to simulate multi-directional wear, closely mimicking real-life usage.

Conclusion

The Martindale Rub Test, conducted using the Martindale Pilling Tester and guided by ASTM D4970 Martindale, is a cornerstone of textile quality control. By assessing abrasion resistance and pilling behavior, manufacturers can ensure their fabrics meet performance expectations in various industries.

Whether for fashion, automotive, or home textiles, understanding this test helps in selecting durable materials, improving product longevity, and maintaining high industry standards.

For further details on ASTM D4970 Martindale or the Martindale Pilling Tester, consult certified textile testing laboratories or equipment suppliers specializing in abrasion testing solutions.
