JD133B Starter Relay – Features, Applications, Installation Guide, and Maintenance Tips

The JD133B starter relay is critical in automotive, industrial, and marine engine systems. Known for its reliability, high performance, and versatile applications, this relay ensures efficient engine ignition by controlling the flow of electrical power to the starter motor.

In this article, we delve into its features, applications, installation process, troubleshooting, and maintenance tips to provide a complete understanding of its functionality.

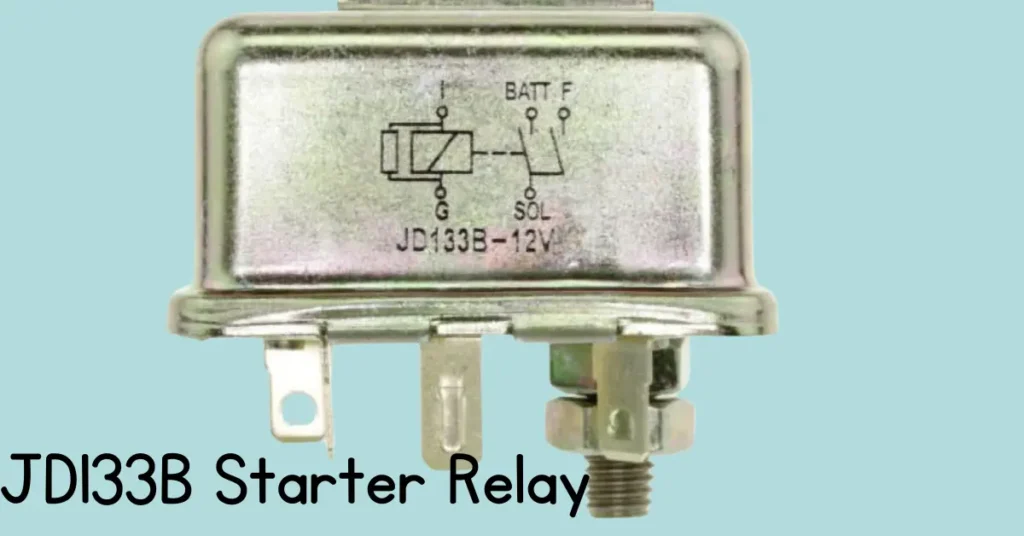

What is the JD133B Starter Relay?

The starter relay is essentially an electrical switch designed to bridge the gap between the battery and the starter motor. When you turn the ignition key or press the start button, the relay enables a high-current circuit to activate the starter motor while using a low-current signal. This prevents overloading of the vehicle’s electrical system and ensures a smooth start.

The JD133B starter relay stands out among similar components for its robust design and adaptability, making it a popular choice in a variety of industries.

Features of the JD133B Starter Relay

The JD133B relay comes packed with features that make it a reliable and efficient solution for engine ignition. Let’s explore these features in detail:

1. High Current Handling Capacity

• The JD133B is designed to handle the heavy electrical loads required by starter motors. It ensures a stable connection between the battery and the starter motor, providing the necessary current to start engines even in demanding conditions.

2. Durable Construction

• Made from high-quality materials, the JD133B relay can withstand extreme temperatures, vibrations, and wear. Its robust construction ensures longevity, making it suitable for heavy-duty and high-performance applications.

3. Compact and Lightweight Design

• Despite its powerful capabilities, the relay has a compact size and lightweight design. This makes it easy to install, even in confined spaces, without adding significant bulk to the system.

4. Corrosion-Resistant Materials

• The relay’s components are treated to resist corrosion and oxidation, ensuring consistent performance in harsh environments, including marine and industrial settings.

5. Versatile Compatibility

• The JD133B starter relay is compatible with various engine systems, including those in automobiles, motorcycles, tractors, and boats. Its universal design allows it to adapt to different voltage requirements and operational needs.

6. Energy Efficiency

• The relay minimizes power loss during the starting process, ensuring efficient energy transfer. This not only protects the starter motor but also extends the battery’s life.

7. Cost-Effective Solution

• With its blend of performance and durability, the JD133B offers a cost-effective solution for engine ignition, reducing maintenance and replacement costs over time.

Applications of the JD133B Starter Relay

The versatility of the JD133B starter relay makes it suitable for a wide range of applications. Here’s how it is used across different industries:

1. Automotive Applications

• In cars, trucks, and SUVs, the JD133B relay powers the starter motor, ensuring quick and reliable ignition every time you turn the key or press the start button. It supports both gasoline and diesel engines, making it a versatile choice for personal and commercial vehicles.

2. Motorcycles and Scooters

• The relay is widely used in two-wheelers, where its compact design fits seamlessly into smaller spaces. It provides reliable starts, even in high-performance or racing motorcycles, where consistent ignition is critical.

3. Heavy Machinery and Agricultural Equipment

• Tractors, excavators, and other heavy-duty equipment rely on the JD133B relay to handle the higher electrical loads needed for their larger starter motors. Its durability ensures dependable performance in rugged working conditions.

4. Marine Applications

• The JD133B is ideal for boats and other marine vehicles, where its corrosion-resistant design ensures long-lasting performance in saltwater environments. It provides reliable ignition for both small boats and larger marine engines.

5. Industrial and Commercial Equipment

• The relay is used in industrial machinery, such as generators, compressors, and construction equipment. Its ability to handle high currents and withstand tough conditions makes it a dependable choice for these demanding applications.

6. Recreational Vehicles (RVs) and ATVs

• In recreational vehicles and all-terrain vehicles, the JD133B ensures smooth starts, enhancing user experience and ensuring reliability during adventures.

How To Earn Money From Instagram Reels In 2024? – Make Money Online

How To Increase Organic Reach On Instagram – Boost Your Online Presence

How To Monetize Instagram Account In 2024 – Earn Money From Insta

Aman Dhattarwal Net Worth, Income, And Expenses Report – Kongo Tech

Theapknews.shop Health & Beauty – Detailed Guide – Kongo Tech

Installation Guide for the JD133B Starter Relay

Installing the JD133B starter relay is a straightforward process, but attention to detail is crucial for ensuring optimal performance. Here’s a step-by-step guide:

Step 1: Gather Necessary Tools and Materials

Before starting, ensure you have the following:

• JD133B starter relay
• Screwdrivers
• Wrenches
• Wire cutters and strippers
• Electrical tape or heat shrink tubing
• Multimeter (for testing connections)

Step 2: Locate the Starter Relay Position

Refer to your vehicle or equipment’s user manual to find the location of the starter relay. Typically, it is situated near the battery, starter motor, or fuse box.

Step 3: Disconnect the Battery

Safety is paramount. Disconnect the battery’s negative terminal to prevent electrical shocks or accidental short circuits during installation.

Step 4: Remove the Old Relay

If you’re replacing an existing relay:

1. Identify the old relay and carefully disconnect the wires attached to its terminals.
2. Take note of the wire arrangement or use your phone to capture a picture for reference during reinstallation.
3. Unscrew and remove the old relay from its mount.

Step 5: Install the New JD133B Relay

1. Position the Relay: Place the JD133B relay in the same location as the old relay or in a secure, vibration-free area. Use mounting screws if necessary.
2. Connect the Terminals: Match the wires to the corresponding terminals on the relay (usually labeled as Input, Output, and Control).
   • Use a multimeter to verify proper voltage and continuity before connecting.
3. Secure the Wiring: Ensure all connections are tight and insulated using electrical tape or heat shrink tubing to prevent exposure to moisture or accidental contact.

Step 6: Test the Installation

1. Reconnect the negative terminal of the battery.
2. Turn the ignition key or press the start button to test the relay’s functionality.
3. Listen for a clicking sound from the relay, indicating that it’s engaging properly.
4. Start the engine and confirm that the starter motor operates smoothly.

Step 7: Final Inspection

• Double-check all connections to ensure there are no loose wires or exposed terminals.
• Secure the relay firmly in place to prevent movement during operation.

You May Also Like it:

10+ Free Online Typing Jobs Without Any Investment [2024]

Top 10 Direct Selling Companies In India [2024] – Kongo Tech

10+ Best Indian Captcha Entry Work Without Investment In 2024

Troubleshooting Common Installation Issues

• Engine Fails to Start: Check the battery voltage and wiring connections. Ensure the relay is receiving the correct input signal.
• Relay Overheats: Verify that the relay’s specifications match the system’s voltage and current requirements.
• Clicking Sound Without Engine Start: Inspect the starter motor and battery for issues, as the relay might be functioning but not receiving sufficient power.
• No Response from Relay: Test the relay with a multimeter to check for internal faults. Replace if necessary.

Maintenance Tips for JD133B Starter Relay

1. Clean Regularly: Wipe the relay and its terminals with a clean, dry cloth to remove dust and prevent corrosion.
2. Inspect Wiring: Check for loose connections or damaged wires during routine maintenance.
3. Replace When Needed: Relays have a finite lifespan; replace them at the first sign of wear or malfunction to avoid engine-starting issues.

Final Thoughts

The JD133B starter relay is a reliable, versatile component essential for efficient engine starts across various vehicles, machinery, and marine engines. Its robust design, high current capacity, and durability ensure smooth ignition and extend the lifespan of starter motors and batteries. With proper installation and maintenance, it delivers consistent performance in even the harshest environments.

Whether for replacement or new installation, the JD133B relay simplifies the process while providing dependable functionality. By following proper setup and troubleshooting steps, it ensures reliable operation, making it a trusted choice for a wide range of ignition systems.
