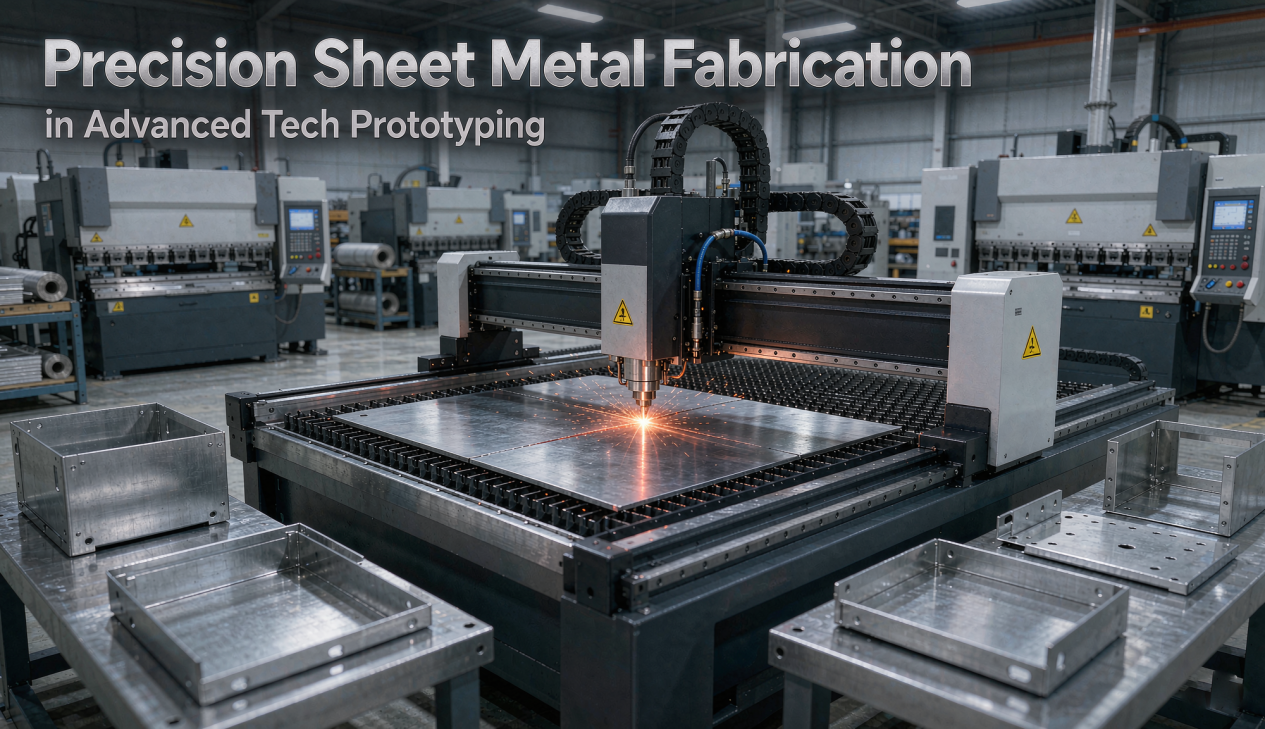

Figure 1: Precision sheet metal fabrication utilizing fiber laser cutting technology for advanced tech prototyping components.
Introduction
High precision sheet metal parts are fundamental for smart hardware and complex machinery. Since the structural strength and geometrical tolerances are highly limited in advanced prototyping, the integration of digital online sheet metal fabrication with DFM gives teams the advantage of workflow optimization. Picking certified suppliers can speed up prototype iterations and production transfer, all the while keeping the fit tolerances down to microns.
Why Are Tech Innovators Shifting from Local Shops to Online Sheet Metal Fabrication Services?
Producing smart physical hardware prototypes is a very time-sensitive and quality-focused process. Typing in metal fabrication services near me usually returns results like small-capacity and old equipment. Local workshops have also limited internet access to get DFM (design for manufacturing) analysis within minutes.
Main disadvantages:
- Capacity constraints: Unable to change the output level for variable requirements.
- Low-quality products: Variations increase when manual procedures are used.
- Delays: Requesting bids, and receiving responses all happens in days.
Online sheet metal fabrication services overcome these through automated quoting and networked facilities. Benefits include instant DFM analysis detecting flaws within seconds, flexible capacity, and shorter lead times. Teams evaluate top-tier custom metal fabrication services to optimize prototyping.
What Core Engineering Principles Determine the Precision Fabrication Tolerances of Sheet Metal Fabrication Parts?
Manufacturers must also manage the material springback, laser kerf, and bending compensation for quality results.
Material Springback and Bend Allowance
All alloys display elastic recovery post-bending. The correct precision fabrication tolerances can be achieved by calculating bend deduction which takes into account the thickness and grain direction. With about a 1-3 degree springback that is a normal level for aluminum, the correction is usually done by over-bending. Die width opening also determines the range of bending radii that can be achieved.
Laser Kerf Compensation and Quality Systems
Fiber laser cutting generates a 0.1-0.3 mm cutting width (kerf), compensated by the programming. Adhering to ISO 9001 and AS9100D, LS Manufacturing manufacturers like the kerf variation and edge quality. Such custom sheet metal fabrication manufacturing standards guarantee sheet metal fabrication parts to comply with tolerance requirements by using a monitoring process in real-time, checking the first article with a CMM, and tracking with SPC.
How Can Hardware Engineers Modernize DFM Strategies to Balance Sheet Metal Fabrication Price and Design Flexibility?
DFM principles principles can lower the product complexity without affecting performance.
Optimizing Bend Radii and Hole Placement
Uniform bending radii will minimize tool changes and shorten changeover time. Providing three times the material thickness from bend lines is a must, as this will reduce hole deformation and rework. Such changes will eventually reduce sheet metal fabrication price.
Estimating Fabrication Costs
A comprehensive step-by-step how to estimate sheet metal fabrication costs approach takes into account the material chosen, number of bends, surface treatment, and required accuracy. For instance, by substituting 304 stainless with 5052 aluminum you reduce the cost of materials by 40%; simplifying multi-bend components helps in lowering the manpower cost. Do factor in these options early stage on.
What Quality Standards Define Leading Sheet Metal Fabrication Suppliers for Advanced Industrial Projects?
Top suppliers set themselves apart by having certifying, and traceability. IATF 16949 calls for defect prevention, which includes FMEA, control plans, and capability studies that guarantee Cpk ≥ 1.67. ISO 14001 is proven manufacturing in sustainable manner by using closed-loop coolant and recycling.
When complex enclosures are at stake in the order, cooperating with certified sheet metal fabrication suppliers is your way of quality and environmental standards implementation.
Key evaluation criteria:
- Depth of Certification: Adherence to IATF 16949 and ISO 14001 standards.
- Inspection Ability: Full inspection via CMM and laser scanning.
- Process Documentation: The existence of FMEA, control plans, and SPC data.
How Are Modern Tech Prototyping Trends Transforming the Production of Complex Structural Components?

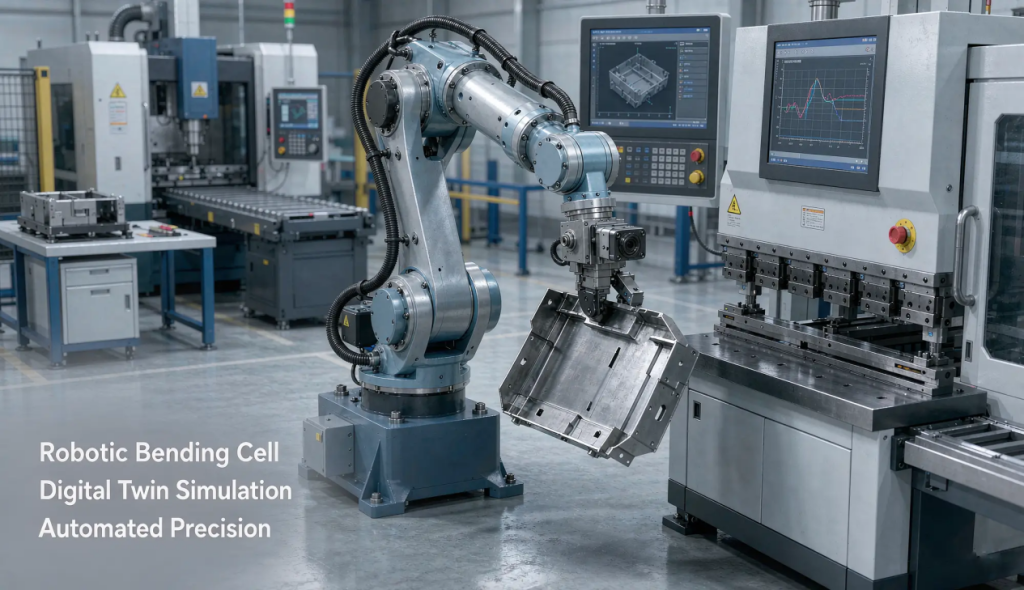

Figure 2: Robotic bending cells integrated with digital twin simulation ensure automated precision in modern sheet metal manufacturing.
Advanced tech prototyping trends use digital integration and automation to reform sheet metal.Using a fiber laser cutting at over 20 m/min means the edge quality is good enough for it to be assembled directly.Robotic bending cells which are capable of changing their tools automatically lead to a complete untended operation.With 3D CAD auto-interpretation, a model is transformed into the machine code so manual errors are avoided.
Key advancements:
- Fiber laser cutting: Up to 12 kW; ±0.03 mm accuracy.
- Automated bending: Six-axis robots with servo-electric press brakes.
- Digital twin simulation: Virtual tryout predicting springback.
- Cloud-based quoting: Instant pricing and DFM feedback from CAD uploads.
These innovations reduce prototype lead times from weeks to days.
Conclusion
Modern sheet metal fabrication relies on digital engineering, accurate tolerance control, and global quality standards. Using DFM strategies in combination with certified manufacturing processes allows product developments while maintaining the consistency of the production quality.
LS Manufacturing deals with high-precision sheet metal components that are cut using lasers and bent with CNC, and are also certified for quality standards. The team of technical experts will be very happy to accept CAD models for a free DFM review.
FAQs
What is the main structural advantage of using online sheet metal fabrication services over standard machinery workshops?
Online services bring together digital DFM analysis and automated scheduling, which gives instant feedback and quicker results.With prototype designs with intricate shapes, online services can assign the right equipment at the right time, more effectively.
How do engineers control precision fabrication tolerances in thin-gauge sheet metal parts?
The main challenge is to maintain the same level of dimensional accuracy while minimizing the metal thickness. This needs careful consideration of sheet metal forming techniques, tool design, and material choice.
Why are ISO 9001 and IATF 16949 certifications essential for custom sheet metal fabrication manufacturing?
ISO 9001 sets up uniform quality control and traceability; IATF 16949 goes further by demanding defect prevention to the highest level. Certification of these kinds of documents is proof of capable and stable production that guarantees every batch to be consistent.
Which design variables have the largest impact on the sheet metal fabrication price?
Sheet type, bends number and direction, tool clearance and surface finishing are the main factors. Eliminating non-standard radii, and unifying diameters simplify the manufacturing process and reduce production cost.
How do sheet metal fabrication suppliers ensure strict quality control for prototype orders?
Fully dimensional comparison is carried out by the quality vendors using CMM and laser scanners on first article inspection besides checkpoints at essential processes in order comply with the CAD drawings.
