A waterproof test chamber: what is it?
A specialized testing device that replicates water exposure under controlled circumstances is called a waterproof test chamber. It is employed to assess a product’s resistance to water incursion without causing damage, loss of operation, or safety hazards. Depending on the required IPX grade, these chambers can simulate rain, splashes, drips, water jets, and even complete submersion.
Adjustable flow rates, angles, pressures, and durations are available in LISUN’s waterproof testing chambers to satisfy different IEC 60529 test standards, from IPX1 (vertical dripping water) to IPX8 (continuous submersion beyond 1 meter). In specifically, the IPX4 waterproof testing is a widely used standard for industrial and consumer electronics that are subjected to water splashes from all directions.
Why Waterproof Testing is Critical
Products are frequently exposed to water in ways that may not be obvious during design. A heavy downpour on an outdoor security camera, accidental coffee spill on a power strip, or high-pressure washing of industrial machinery can all result in water ingress. For devices with electronic components, this can cause:
- Short circuits
- Sensor failure
- Rusting or corrosion
- Signal interference
- Complete shutdown or safety hazards
Waterproof testing ensures that devices:
- Meet legal and regulatory safety standards
- Perform reliably under real-world moisture exposure
- Prevent costly product returns and warranty claims
- Gain market certifications such as CE, UL, or CB Scheme
- Maintain consumer trust and brand reputation
Understanding IP Ratings: Focus on IPX4
Devices are rated according to how well they protect against incursion from solids (first digit) and liquids (second digit) under the Ingress Protection (IP) rating system, which is regulated by IEC 60529. IPX4 certification is what indicates the protection from water splashing in any direction.
In IPX4 testing:
- Water is sprayed using oscillating tubes or nozzles
- The spray reaches the EUT (Equipment Under Test) from all directions
- No harmful water ingress should occur after the exposure
- The test duration typically lasts 10 minutes
Although they are not completely waterproof, products that pass IPX4 testing can be properly promoted as splash- or water-resistant.

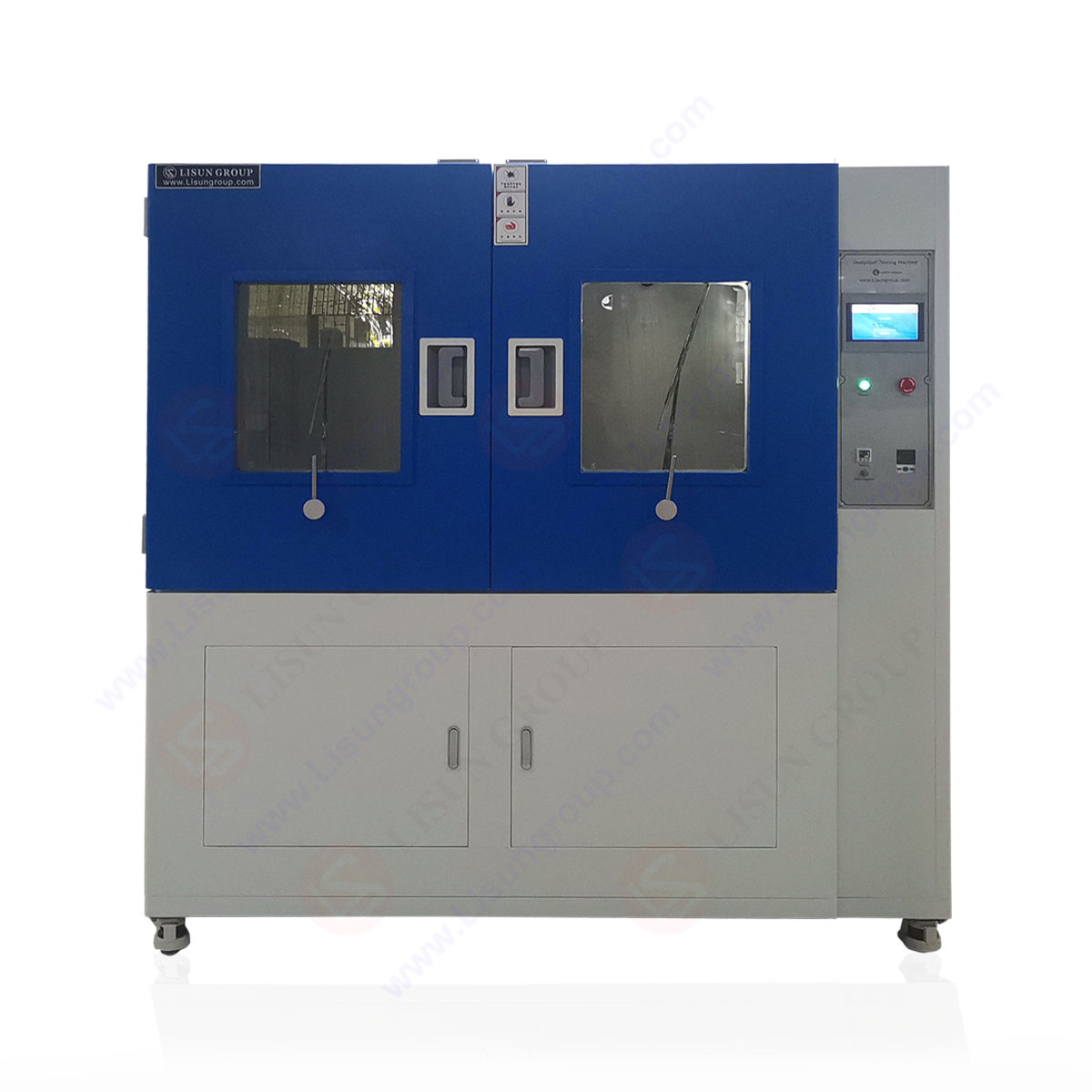

LISUN’s Waterproof Test Chambers: Versatile, Compliant, and Reliable
A comprehensive range of waterproof test chambers designed for IPX1 through IPX8 classes is available from LISUN. These systems are appropriate for a variety of applications, ranging from industrial automation to consumer electronics, because they offer dynamic spray testing, dripping tests, and immersion simulations.
Important characteristics of LISUN Waterproof Test Chambers include:
- Adherence to GB/T 4208, ISO 20653, and IEC 60529
- IPX1–IPX8 testing configurations available, including:
- Drip boxes (IPX1, IPX2)
- Oscillating spray tubes (IPX3, IPX4)
- Spray nozzles & jet nozzles (IPX5, IPX6)
- Immersion tanks (IPX7, IPX8)
- Programmable control systems with intuitive touchscreens
- Adjustable pressure and flow settings
- Customizable nozzle diameters and chamber sizes
- Rotating platforms and swing arms for 360° exposure
- High-grade stainless steel build to prevent corrosion
- Data logging and test report generation software
These systems are available in modular formats, allowing customers to select the exact configuration required for their product class and target certification.
How IPX4 Waterproof Testing Works
The equipment is placed on a platform (often rotating) to ensure that all angles are exposed to water.
The test involves:
- Setting the spray apparatus to produce water at a defined flow rate (typically 10 l/min).
- Orienting the nozzles or oscillating tube to simulate splashes from every direction.
- Inspecting the device for signs of water ingress or malfunction after the test.
Some LISUN models use hand-held spray nozzles as an alternative method, particularly for larger or irregularly shaped test objects.
Applications of LISUN Waterproof Testing Chambers
LISUN waterproof chambers are used across many industries, where water exposure is either expected or probable during regular use.
- Consumer Electronics
Smartphones, earbuds, smartwatches, and portable speakers all require water resistance for marketing and warranty purposes.
- Automotive Electronics
Headlights, wiper motors, rear-view cameras, and door sensors must function during rain, car washes, and fog.
- LED Lighting
Outdoor lighting fixtures and solar lamps must resist splashes and rain without compromising performance or safety.
- Domestic Appliances
Strong enclosures that reject water under stress from use are necessary for vacuum cleaners, washing machines, dishwashers, and kettles.
- Industrial Control Panels
Devices installed in manufacturing environments must resist water jets and occasional high-pressure cleaning.
Why Choose LISUN’s Waterproof Chambers?
LISUN brings a number of key advantages to labs, manufacturers, and certification bodies worldwide:
- Affordability: LISUN offers the same IPX compliance at a significantly lower cost. This is compared to high-end competitors.
- Versatility: From handheld nozzles to fully automated immersion tanks, LISUN systems are modular and scalable.
- Compliance: All systems meet or exceed IEC, ISO, and GB/T standards.
- Global Service Network: LISUN offers calibration, spare parts, and training wherever it is required, with support in more than 50 countries.
- Durability: Long service life is guaranteed with corrosion-resistant parts and stainless steel interiors.
LISUN guarantees consistent, precise results whether you’re evaluating a solar inverter housing or a batch of earbuds.
Comparison: LISUN vs Other Waterproof Test Systems
| Feature | LISUN Waterproof Chambers | Other Premium Brands |
|---|---|---|
| IP Levels Supported | IPX1 to IPX8 | Same |
| Automation | Available for all levels | Often limited to higher IP |
| Control Panel | Touchscreen + Software | Advanced touch interfaces |
| Customization | Modular setups | Fixed models |
| Cost | Mid-range | Premium-priced |
| Compliance | Full IEC/ISO compliance | Full |
| Global Support | 50+ countries | Mostly North America/EU |
In terms of price-performance ratio, LISUN delivers exceptional value, especially for growing manufacturers and labs in developing markets.
Software, Calibration, and Test Documentation
LISUN provides optional data logging software with features like:
- Test duration tracking
- Flow and pressure monitoring
- Real-time video capture (optional)
- Automated report generation in PDF/Excel
- IPX certification workflow assistance
Calibration services are ISO 17025-compliant, and LISUN offers annual recalibration as part of its service contracts. All chambers come with traceable calibration certificates, vital for formal certification submissions.
Custom Options and Accessories
LISUN’s waterproof test setups can be tailored to match specific test requirements, including:
- Chamber size for large equipment
- Flow rate customization (for IPX5/IPX6)
- Mounting fixtures for unusual product shapes
- Rotating or tilting platforms
- High-pressure pumps for jet testing
- Submersion tanks with controlled depth for IPX7/8
This modularity allows companies to scale from IPX1 through IPX8 with ease, using the same central control unit and interchangeable attachments.
Conclusion
Waterproof testing has changed from being a specialized procedure to becoming a general requirement as water resistance becomes a common consumer expectation and a crucial safety consideration in industrial design. Long-term dependability, product certification, and international market access all depend on adherence to IPX standards like IPX4.
The Waterproof Test Chambers from LISUN provide a reliable, legal, and affordable way to satisfy these specifications. With its modular systems, sophisticated controls, and worldwide support, LISUN enables labs and manufacturers to verify water resistance in a wide range of products.
LISUN assists you in demonstrating that your goods are weatherproof, whether you’re developing the next generation of smartwatches, streetlights, or sensors for electric vehicles.
Frequently Asked Questions (FAQs)
Q1: Describe IPX4 in detail.
A product with IPX4 protection is shielded against water splashes coming from any angle. Protection from immersion or water jets is not guaranteed.
Q2: Is LISUN’s chamber suitable for all IP tests?
Yes. LISUN offers equipment for IPX1 through IPX8, with customizable configurations for each level.
Q3: How long is the IPX4 test conducted?
The standard duration is 10 minutes, with water sprayed from all directions at a set flow rate.
Q4: Can I upgrade to higher IP levels later?
Yes. LISUN’s modular design allows clients to add spray nozzles, pumps, and immersion tanks for future testing needs.
Q5: Does LISUN offer installation and training?
Of course. Through a network that spans more than 50 countries, LISUN offers multilingual training, installation, and calibration services.
Water resistance has become a need in today’s technologically advanced society. All the devices that we use are frequently subjected to splashes, rain and even complete submersion. Manufacturers use specialized tools like the Waterproof Test Chamber to conduct waterproof and water-resistant tests to ensure that products can withstand such environmental stress. These tests, which assess protection against water splashes, are frequently in line with international Ingress Protection requirements. A top manufacturer of quality assurance tools worldwide, LISUN provides a full line of waterproof testing solutions that are intended to replicate situations of water exposure in a lab setting. The fundamentals of water ingress testing, the significance of IP rating validation, and how LISUN’s chambers assist companies in achieving compliance and quality assurance are all covered in this article.
